Ultra Precision
Thermally compensated axes and glass-scale feedback hold sub-micron repeatability across every shift.
0.8µm

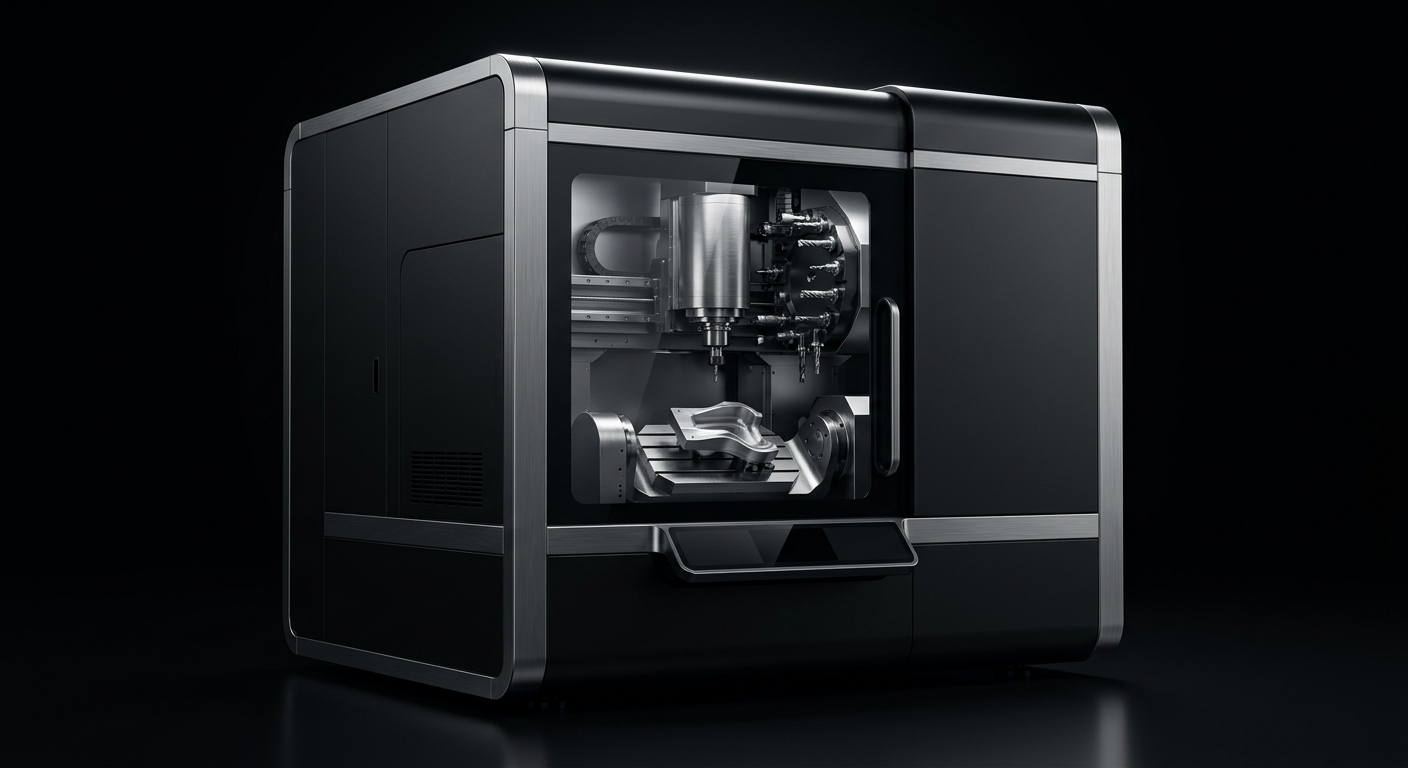

Introducing the TDR X-5 Series
Five-axis machining centers built to micron tolerances, driven by adaptive intelligence, and engineered to run for decades.
Model
TDR X-5 Titan
- Repeatability
- ±0.8µm
- Repeatability
- RPM spindle
- 24k
- RPM spindle
- Simultaneous
- 5-axis
- Simultaneous
Core strengths
Built different. Down to the micron.
Smart Automation
An on-board neural controller adapts feeds, predicts tool wear, and schedules maintenance before downtime.
38% faster
Global Durability
Monolithic polymer-granite beds and sealed drivetrains engineered for 100,000+ hours in any climate.
100k hrs
TDR X-5 Titan
Scroll to take it apart — layer by layer.
01 / 03

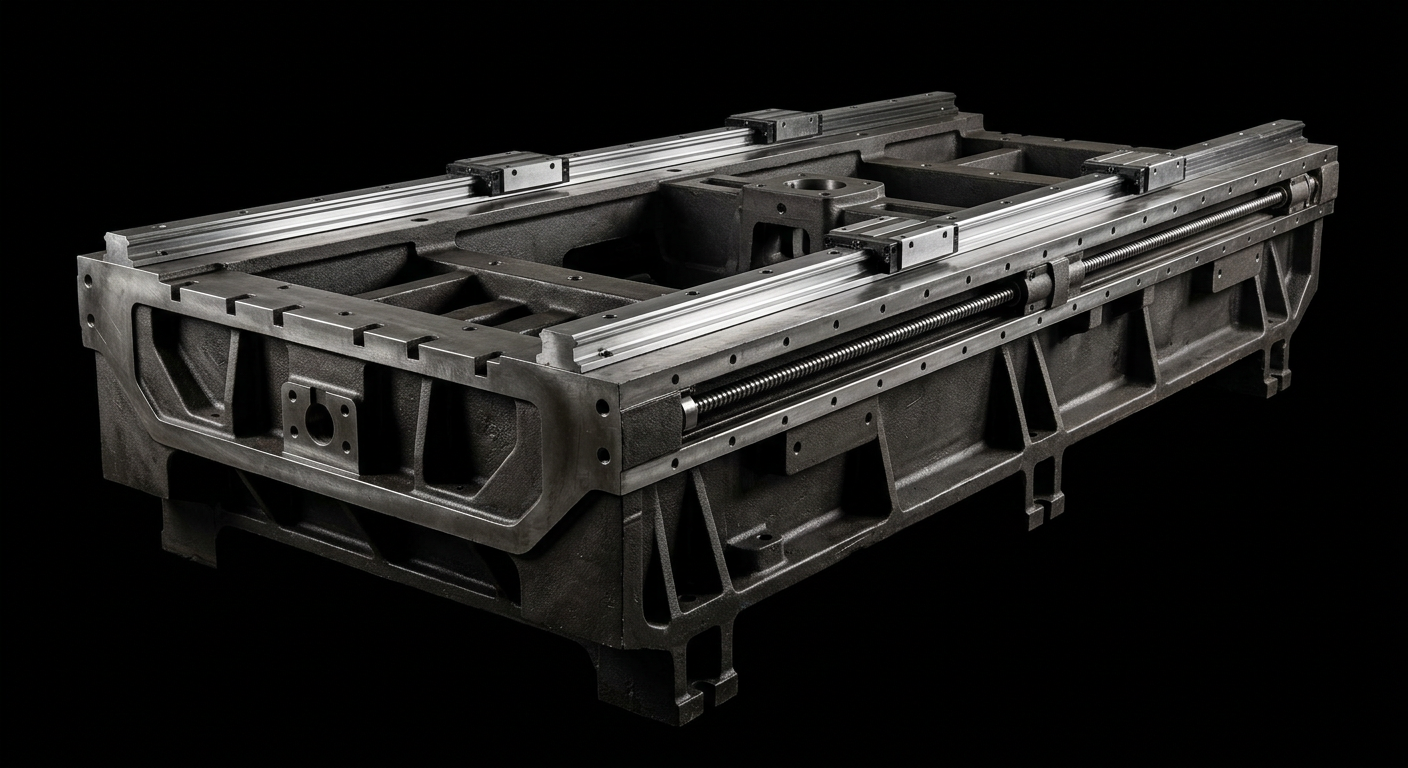

01 — Foundation
A monolithic frame that refuses to move.
Twelve tonnes of polymer-granite and stress-relieved cast iron absorb vibration ten times better than welded steel.
Base mass

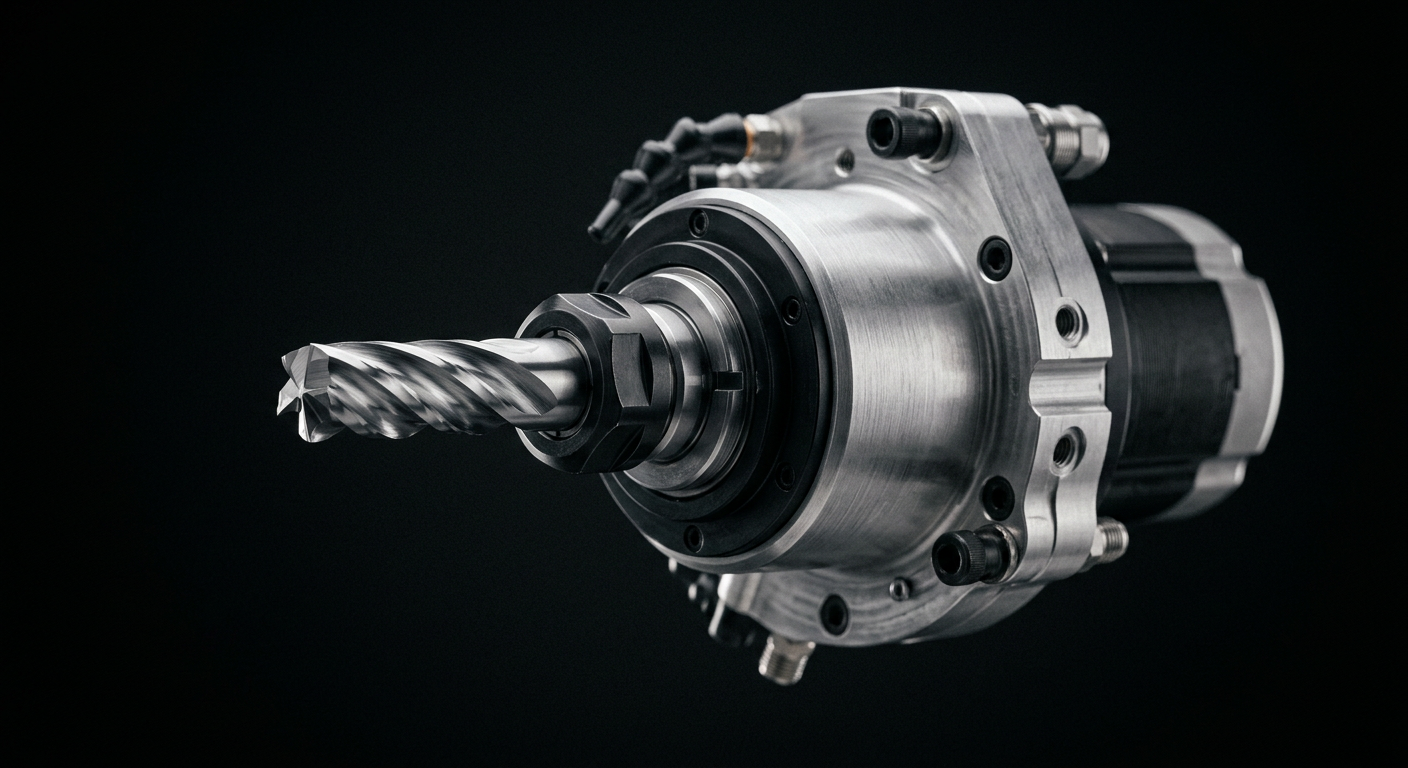

02 — Motion
A spindle tuned like an instrument.
Direct-drive, oil-air lubricated and balanced to G0.4, delivering 24,000 RPM with whisper-quiet stability.
RPM

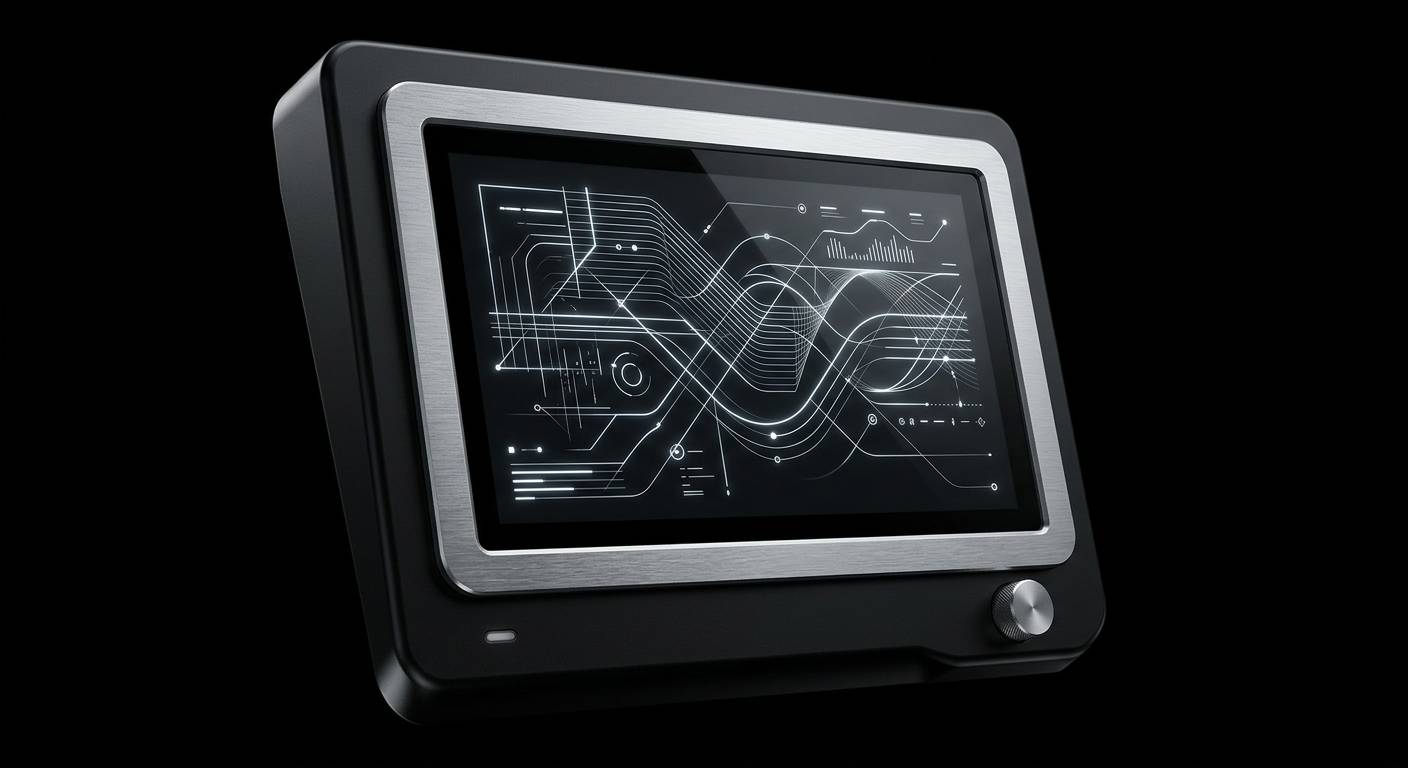

03 — Intelligence
A controller that learns every cut.
TDR Neural OS reads 4,000 sensor signals per second, adapting feeds in real time and forecasting wear before it happens.
Sensor reads
Product categories
Find the machine for your process.
Tech specs
Every number, engineered.
Full specifications for the TDR X-5 Titan. Custom configurations available on request.
Request full datasheet- X / Y / Z travel
- 1,200 / 800 / 700 mm
- A-axis tilt
- +30° / −120°
- C-axis rotation
- 360° continuous
- Table diameter
- Ø 800 mm
- Max workpiece load
- 1,500 kg
- Max speed
- 24,000 RPM
- Power (S1 / S6)
- 46 / 58 kW
- Torque
- 180 Nm
- Tool interface
- HSK-A63
- Balance grade
- G0.4
- Positioning (ISO 230-2)
- ±2.0 µm
- Repeatability
- ±0.8 µm
- Thermal compensation
- Active, 64-point
- Feedback
- Absolute glass scales
- Controller
- TDR Neural OS 4
- Tool magazine
- 120 / 240 / 480 pockets
- Pallet changer
- 2–18 stations
- Connectivity
- OPC UA, MTConnect, 5G
- Footprint (W × D)
- 3.4 × 4.8 m
- Height
- 3.1 m
- Machine mass
- 18,500 kg
- Power supply
- 400 V / 3-phase / 85 kVA
